ZhongFeng Electronic Technology Co., Limited

PCB Assembly Capabilities

ZF Electronic is a professional custom PCB assembly manufacturer and we have done turnkey PCB Assembly service from 2003. We own a PCB factory, a PCB assembly workshop (6 SMT lines, 2 DIP lines, 2 AOI, Reflow/Wave soldering ovens, X-Ray tester etc.) and a experienced components sourcing team in Shenzhen China.


Our electronic printed circuit board assembly service could support our customers from prototype PCB assembly to big volume PCB assembly production. As a PCB assembly manufacturer, our aim is to provide highest possible quality electronic board assembly service with affordable price in quick lead time.


. SMT assembly, Thru-hole assembly, hybrid assembly

. 01005, 0201, fine pitch and BGA assembly

. BGA would pass X-Ray inspection

. AOI, ICT (In-Circuit Test), FCT (Functional Circuit Test) and X-Ray inspection

. IC Programming (burn-in)

. Quick prototyping

. ISO9001, IATF16949, RoHS and IPC-A-610F compliant

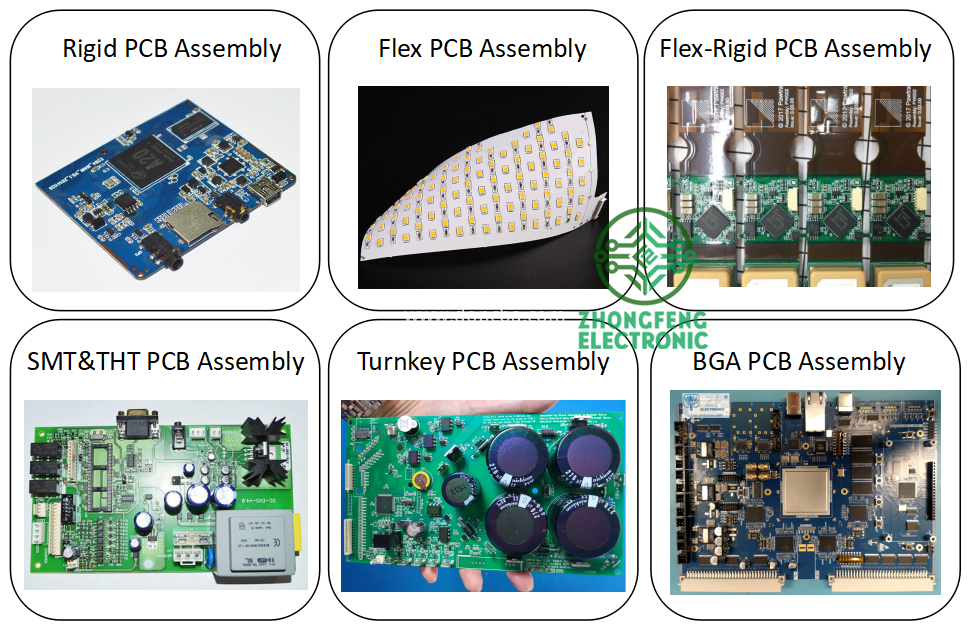

Pcb Assembly 2


PCB Assembly Capabilities


Lead time

8hours-5 days, 1-2 weeks, or scheduled deliveries (not include the shipping time)

Quantity

From prototype to big volume, no MOQ

Assembly type

Surface mount

Through hole

Hybrid

PCB specification

PCB size smaller than 30mm must be panelized.

Max: 510x460 mm

Material: Rigid, metal core, FPC

Surface finish: lead / lead-free HASL, ENIG, silver, OSP, Golden finger

Parts procurement

Full turnkey (we provide all components)

Partial turnkey (Customer provide the main components and we provide the rest)

Kitted (Customer provide all components)

Component types

SMT 0201 or larger

BGA 0.3mm pitch

QFP 0.3mm pitch

BGA X-ray inspected

Cable & wire

Conformal coating

SMT parts presentation

Bulk

Cut tape

Partial reel

Reel

Tube

Tray

Solder types

Lead-free: RoHS compliant

Stencils

Laser-cut stainless steel

Miscellaneous

IC programming, custom testing, free DFM checking, ICT, FCT

Certificates ISO9001, IATF16949
