Double Sided Multilayer FR4 94v0 ENIG PCB Board

Share to:
    Payment Type: T/T,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Piece/Pieces
    Delivery Time: 5 Days

Basic Info

Model No.: ZFB003

Assembly Type: SMT And THT Assembly

Surface Finished: ENIG/ Immersion Gold

Silkscreen: White

Solder Mask: Green

Application: Bus

Type: Rigid Circuit Board

Dielectric: FR-4

Additional Info

Packaging:  EPE, Silica gel, bubble film, normal packing.

Productivity: 500,000pcs per Month

Brand: ZhongFeng

Transportation: Ocean,Land,Air, Fedex

Place of Origin: Shenzhen China

Supply Ability: 500,000pcs per Month

Certificate: ISO9001, IATF16949, IPC-A-610F

HS Code: 8517709000

Port: Shenzhen,HongKong

Product Description

Double Sided Multilayer FR4 94v0 ENIG PCB Board

The definition of Multilayer PCB is a PCB that is made with three or more conductive copper foil layers. These appear as several layers of double-sided circuit boards, laminated and glued together with layers of heat-protective insulation between them. The entire construction is arranged so that two layers are placed on the surface sides of the PCB to connect to the environment. All electrical connections between the layers are achieved with vias such as plating through holes, blind and buried vias. Application of this method then leads to the generation of highly complex PCBs of varying sizes.


Pcb Boards 1


PCB Assembly-2


Our Services:

1. PCB Design: One-stop EMS manufacturer, speciallized in designing wireless charging PCBA, bluetooth earphone & Voice box PCBA and other consumer electronics products.

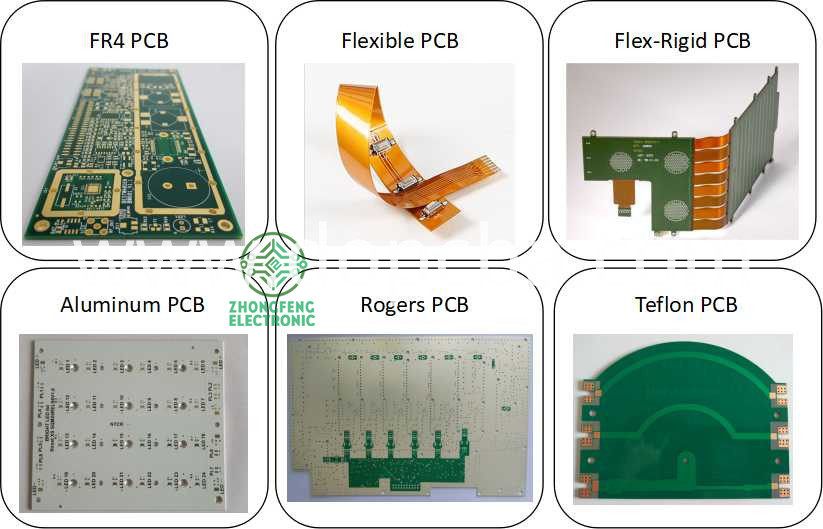

2. PCB Manufacture: Standard FR4 1-36layer PCB, Flex PCB, Rigid-Flex PCB, HDI PCB, Rogers PCB, Metal Core PCB, etc.

3. PCB Assembly: SMT and THT assembly, available for 01005, fine pitch and BGA assembly.

4. Components Sourcing: Available to source all components shown in BOM file (BOM Kitting), hard to find components and long lead time components, etc.

5. One-Stop Turnkey PCBA Manufacture: PCB design+PCB Manufacture+Components Sourcing+PCB Assembly+Electronic Assembly, or PCB Manufacture+Components sourcing+PCB Assembly, etc.


Technical Capabilities:


PCB Manufacture Capabilities

Layers

1-36 layers

Material

FR-4 (Standard FR4, Mid-Tg FR4, Hi-Tg FR4, Lead free assembly material) , Polymide, Metal Core, Rogers, etc.

Board Thickness

0.1mm-6.0mm (.016"-.126")

Copper Thickness

1/2oz-6oz(18um-210um)

Board size

600mm*1200mm

Min Tracing/Spacing

0.075mm/0.075mm (3mil/3mil)

Min drilling Hole diameter

0.15mm(6mil), 0.1mm(4mil)-laser drill

Solder Mask

LPI, different colors(Green, Green matt, Black, Black Matt, White, Red, Yellow, Blue)

Silkscreen color

White, Blue, Black, Red, Yellow

Surface finish

Lead free HASL, immersion gold, golden finger, immersion tin, immersion silver, OSP, Carbon oil, plated hard gold(up to 100u")

Impedance tolerance

+/-5%~+/-10%

Chamfer of Gold Fingers

20, 30, 45, 60

Test

Flying probe or Testing fixture

PCB Assembly Capabilities

Quantity

From prototype to big volume, no MOQ

Assembly type

SMT, THT or Hybrid

Parts procurement

Full turnkey (we provided all components)

Partial turnkey ( Customer provide the main components and we provide the rest)

Kitted (Customer provide all components)

Component types

SMT 01005, BGA 0.3mm pitch, QFP 0.3mm pitch, etc.

Test

Custom testing, ICT, FCT, AOI, Test jig

Our Team and Office:


Zhongfeng Smt Factory


Our PCB Manufacture Factory:

Pcb Assembly

Our PCB Assembly Factory:

Turnkey Pcb Assembly


FAQ:

Q: What files need for custom PCB manufacture?

A: Gerber or .pcb or .pcbdoc or .brd file is required.

Q: What files need for Custom PCB Assembly order?

A: Gerber and the BOM files are required, if you have pick&place file, send it to us as well.

Q: What is payment terms acceptable?

A: For new customer and the total amount within 10000usd, 100% payment in advance by PayPal or T/T or WU. For total amount beyond 10000usd, please contact us.

Q: What files need for PCB/PCBA clone services?

A: For PCB/PCBA clone service, send us the pictures for evaluate first, and we will need 1-2 samples of the PCB/PCBA board for copying.

Looking for ideal ENIG PCB Board Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Multilayer PCB Board are quality guaranteed. We are China Origin Factory of FR4 PCB Board. If you have any question, please feel free to contact us.
